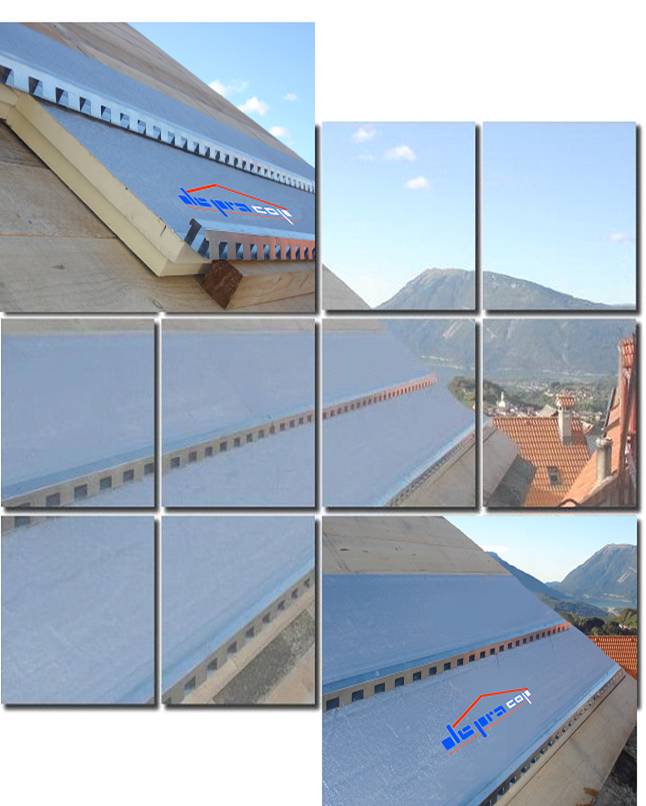

INSULATING PANELS FOR ROOF
INTELLIGENT SOLUTIONS FOR THE ROOF
|
STANDARD DIMENSIONS |
|
Finishing |
flying |
Width |
342 mm +/-5 |
|
Thickness |
mm 60 – 80 – 100 – 120
|
Length |
2400 mm |
|
PRODUCT PROPERTIES |
NORM |
UNIT |
WORTH |
|
Fire behavior:
ASJDFOAJEFJAJfoam
ASJDFOAJEFJAJfoam
ASJDFOAJEFJAJpanel |
D.M. 26/06/84
EN 13501
D.M. 26/06/84 |
Class
EUROCLASS
Class |
2
E
0 |
|
Water vapour diffusion resistance µ |
EN 12086 |
|
infinite |
|
Compressive
strength |
EN 826 |
KPa |
150 |
|
Bulk density
of the panel |
ISO 845 |
Kg/m³ |
40 |
|
Density of
the foam |
ISO 845 |
Kg/m³ |
35 |
|
Dimensional
stability
-20 °C
ASDGSETHGHDRHGFH+70
°C |
EN 1604 |
% |
0,2
0,3 – 1,0 |
|
Initial thermal conductivity at
10 °C |
EN 12667 |
W/mK |
0,022 |
|
Declared
thermal conductivity
λD |
EN 13165 |
W/mK |
0,024 |
|
Declared thermal resistance RD
FSDGESRGGBGGsp.
60 mm
FSDGESRBGGGGsp.
80 mm
FSDGESRGBGGGsp.
100 mm
FSDGESRGBGGGsp.
120 mm |
EN 13165 |
m² K/W |
2,50
3,30
4,15
5,00 |
|
Characteristics support |
Embossed Aluminium a 50 µm |
